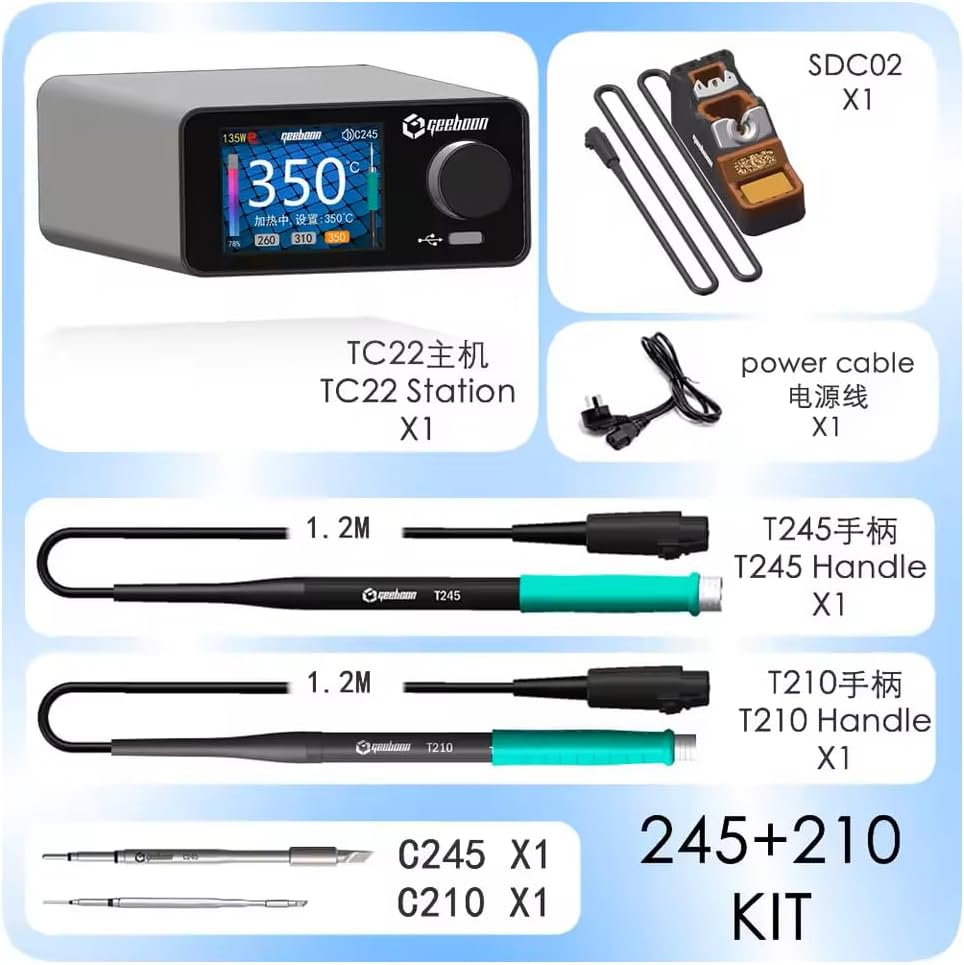

TC22 soldering station compatible with 115/210/245/T12 soldering tip color curve display soldering rework station (TC22, SDC02 245210KIT)

TC22 The leakage voltage between the soldering iron tip and the ground wire is less than 10mV, which is lower than the ANSI/ESD S20.20 requirement. Full metal body. 1.Supports three types : T12, C245, C115, and C210. ​​The specific support depends on the hardware model. 2. 2.0-inch color screen (320*240), temperature control range 100~480℃. 3. PID temperature control, temperature stability ±1.5℃ (after stabilization). 4. Temperature memory, three-speed fast temperature setting. 5. Sleep (sleep seat mode: put the handle on the soldering iron rack to enter sleep mode, low temperature insulation delays the service life of the soldering tip, pick up the handle to work automatically 6. Shutdown (stop heating after waiting for a period of time after sleep, the time can be set, and short press the knob after entering shutdown to resume work). 7. The real-time curve display of the soldering station temperature can reflect the temperature and output status curve. 8. The software can be updated, and the software functions of the soldering station are constantly upgraded.

• The nominal power of TC22 has been changed to 220W, but it still uses a 240W power supply. The default power of C245 is 180W, and you can modify the power yourself. Supports short-circuit protection (response time is less than 10us), hot-swappable heating core, no burning of the host, no burning of the heating core, absolutely high performance. The voltage of the TC22 soldering iron tip to the ground is less than 10mv, which complies with safety regulations and can repair precision instruments.
